Features:
- Onboard Intel Celeron J1900 / Intel Core i5 i7 CPU
- Onboard DDR3L 4G/DDR4 8GB,Optinal 1 SODIMM Slot, max 8GB
- LCD+HDMI dual display, synchronous/asynchronous mode

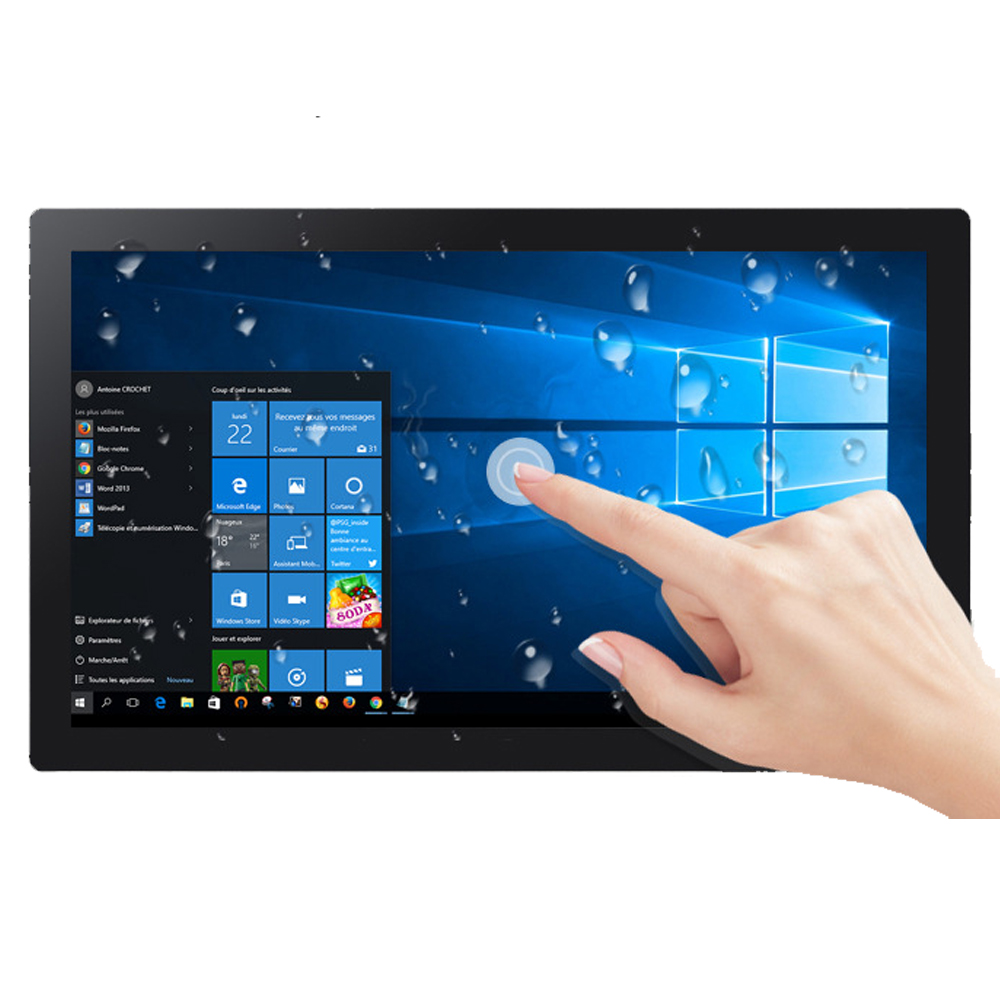

- Full plane touch screen, front panel with IP65 protection level
- Wide voltage deisgn,support 9-36V

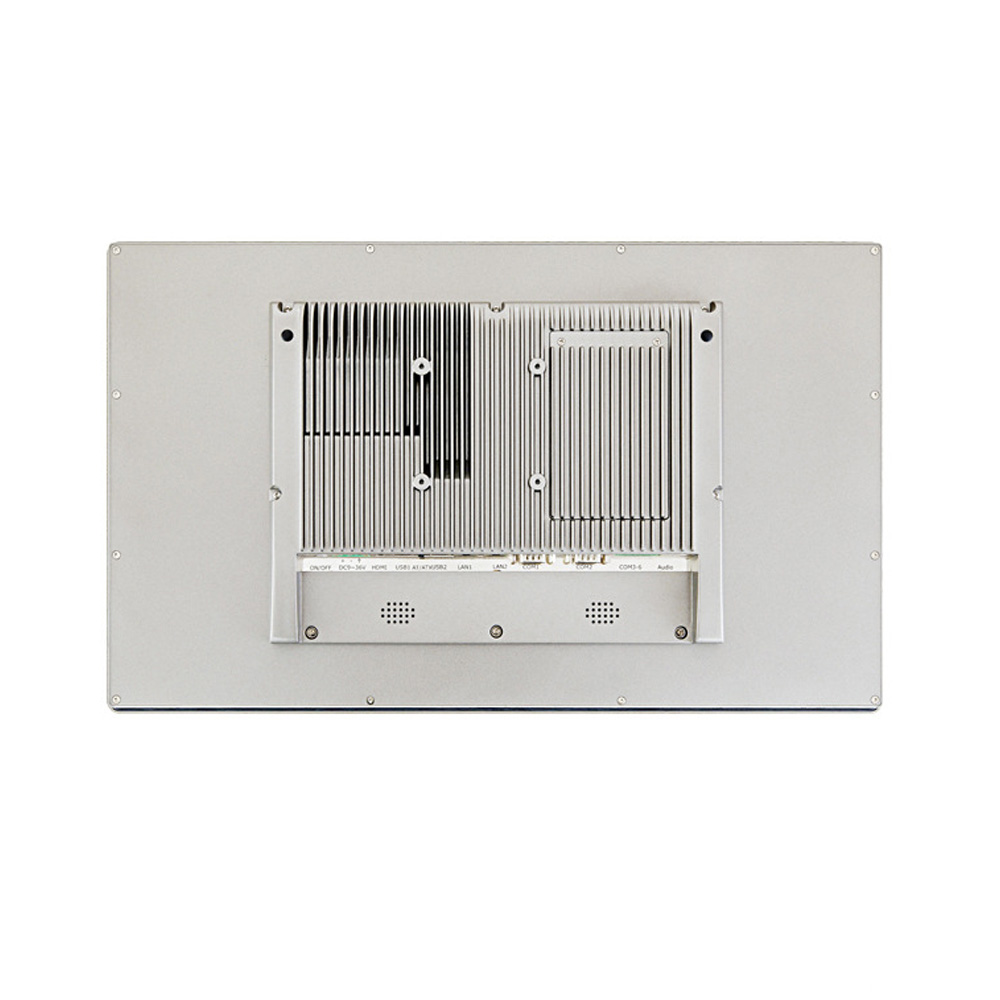

- Fanless Operation
Specifications:

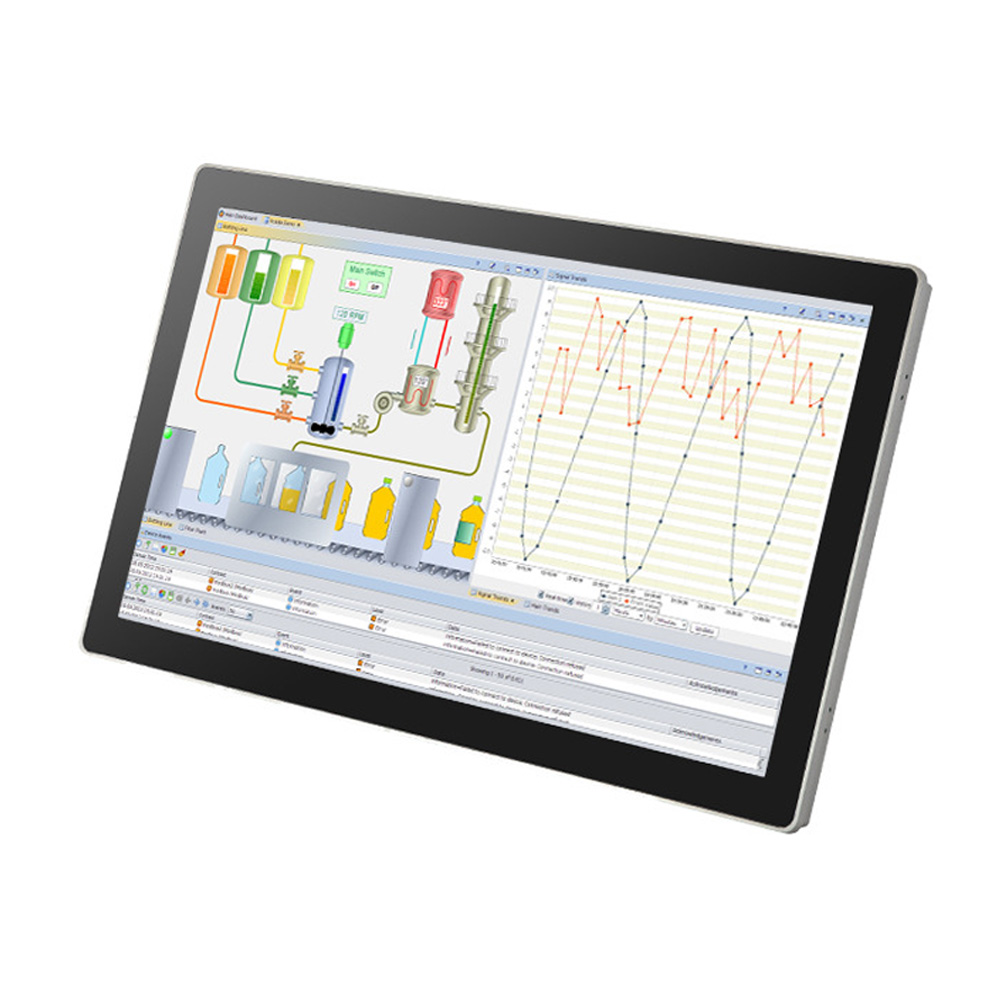

| Name | Industrial Panel PC TPC-2105 |
| Processor | Intel Celeron J1900/Intel Core i5 4278U/Intel Core i7 4500U/Intel Core i5 7360U/Intel Core i7 7560U/Intel Core i5 8250U/Intel Core i7 8550U |
| Memory | Onboard DDR3L 4G
Optinal 1 SODIMM Slot, max 8GB |
| LAN | 2*GbE RJ45 Intel@i211-AT |

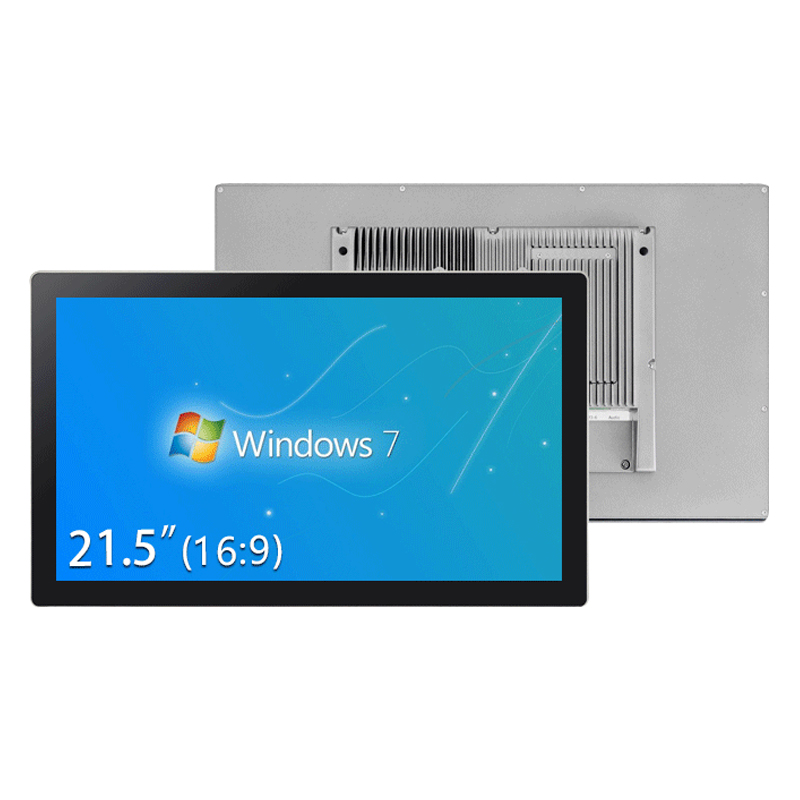

| LCD | 21.5″ TFT -LCD |
| Interface Port | 3*USB 2.0,1*USB 3.0,inside 1*USB2.0 dongle interface |
| 2*DB9 COM 1&COM2,RS232/422/485 | |
| 2 * 3-wire COM3&COM4 RS-232/rs485 Phoenix terminal | |
| 2 * 3-wire COM5&COM6 RS-232 Phoenix terminal | |
| 1 * Audio Line-out | |
| 2 * 8 Ω 1W power amplifier output (optional) | |
| 1 * AT/ATX DIP switch
1*PhoenixTerminal DC 9-36V Input |
|
| 1 * HDMI | |
| 1 * 14 bit GPIO (optional) | |
| Storage | Support 1*MSATA SSD+1*SATA HDD/SSD+1*M.2 SSD(only for core series) |
| WIFI | 1*full height Mini PCIE,onboard SIM slot, support 3G/4G
1*half height Mini PCIE,support WiFi/Bluetooth |
| Watchdog timer | 1-255 seconds programmable setting |
| Support OS | Windows 7/8/10,Linux |
| Material | Aluminum alloy |
| Installation | VESA 75/ Panel mount |
| Dimension | 534.42×327.94×62.09 mm |
| Net Weight | NW:6.5KG, GW:7.5kg |
| Operating Temperature | -20℃ ~ 60 ℃ |
| Storage Temperature | – 30℃~ 70℃ |
| Storage Humidity | 10~90% @30℃ non-condensing |
| Power Supply | DC 12V 3-pin Phoenix terminal |
| Panel | 21.5″ TFT -LCD |
| Resolution | 1920 x 1080 |
| Max.Colors | 16.7M |
| Brightness | 250 cd/m² |
| Viewing Angle(CR>=10) | -85~85° (H), -85~85° (V) |
| BackLight | LED |
| BackLight MTBF (hours) | 30,000 |
| Touch Screen | |
| Type | 5-wire, analog resistive / Capacitive optional |
| Light Transmission | >85% |
| LifeTime | > 10 million activations |
