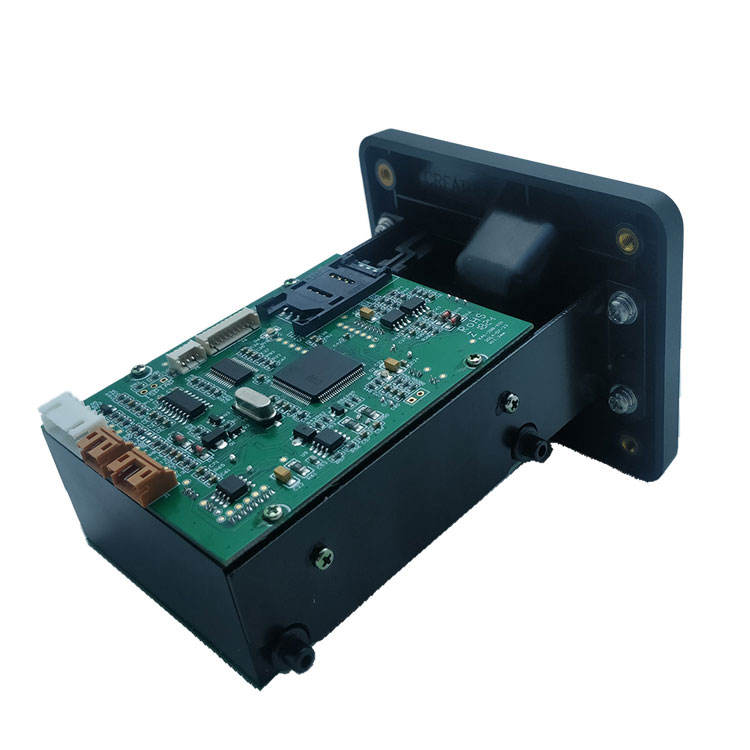

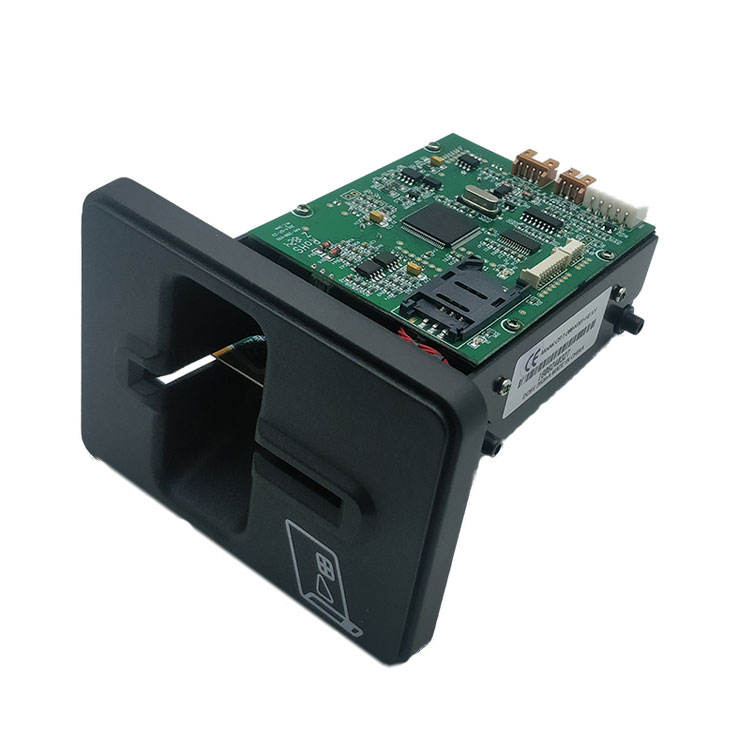

Hybrid Card Reader CRT-288-K Product Features
1. Dual Card Functionality：Supports both magnetic card reading and IC card reading/writing.
2. Durable & Efficient：Features long-life magnetic modules and supports active data upload.
3. Flexible Configuration：Offers multiple bezel options and PSAM card slot options.
4. Authoritative Certification：Complies with EMV and PBOC certification standards.
5. Customizable Service：Provides tailored customization services to meet specific needs.
6. Controllable Card Latching：Equipped with a latching lock function for precise card retention and release.
Hybrid card reader CRT-288-K001 product specification
| Card type | Magnetic card ISO7810,ISO7811 |
| IC card ISO7816-1,2,3,4 | |
| Support T=0,T=1 CPU card | |
| Support T=0,T=1 PSAM card | |
| RFID card ISO14443 Type A & B | |
| Support Mifare 1 S50,S70,UL card,Mifare Plus, | |
| Mifare Desfire | |
| Card dimension | Width:53.92~54.18mm |
| Length:85.47~85.90mm | |
| Thickness:0.76±0.08mm | |
| Power supply | DC5V±5%/USB (powered) |
| Communication interface | RS-232/USB(powered) |
| Operation current | <250mA |
| Magnetic head | 1,000,000 cycles |
| IC card contact | 300,000 cycles |
| Latch mechanism | 500,000 cycles |
| M.T.B.F | >100,000hours(electronic components only ) |
| Environmental conditions | Operation:0~50℃/0~90%RH(Non-condensing) |
| Storage -25~80℃/0~95%RH(Non-condensing) | |
| Weight | About 240g |
Hybrid card reader CRT-288-K001 product application
Media inquiry machine
Recharging machine
Tanker
Self-service terminal
Vending machine
ATM
