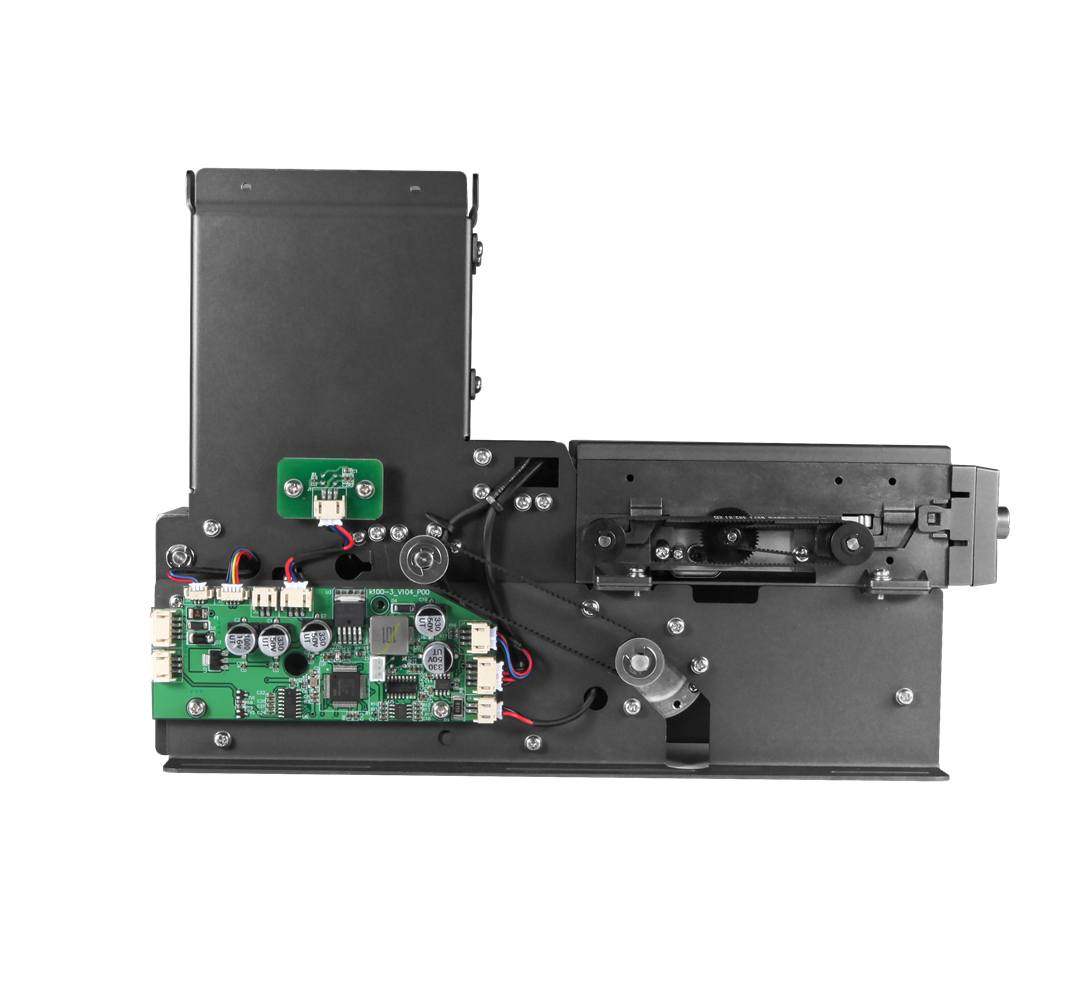

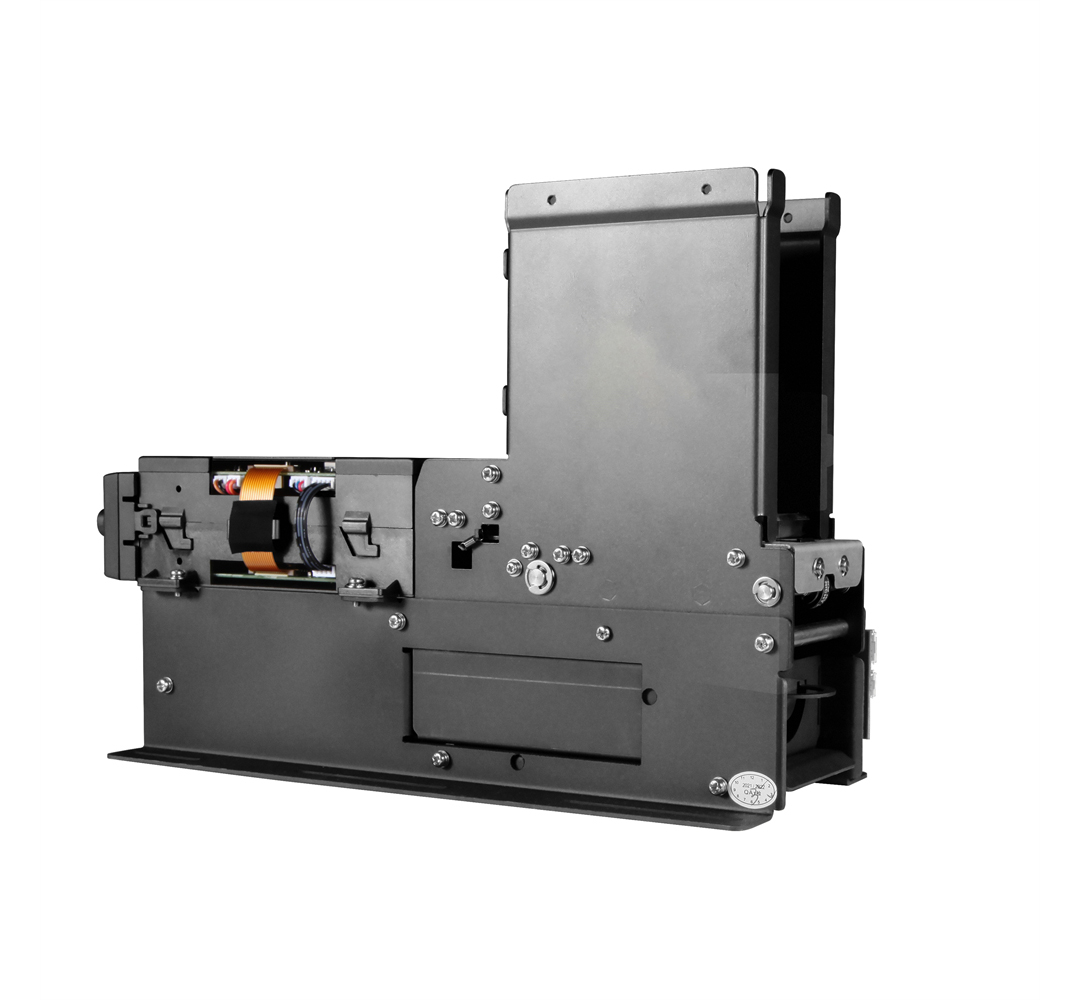

Automatic Card issuing machine with with Magnetic/IC/RF card reader writer
Features:
- Card dispensing with card reading/writing function
- Supports magnetic card reading, contact IC card read/write, and contactless IC card read/write.
- By changing the channel space can accept all the card thickness between 0.7-1.0mm
- Max loading 300pcs card thickness 0.76mm compare standard 150pcs cards
- Support Command-triggered insertion and magnetic sensor-triggered insertion.
- Sensors: Photoelectric detection utilizing infrared photoelectric sensors, featuring long service life and low failure rate.
- SDK/DLL/Demo software for Windows,Limux and Android.
Specifications:
| Card Type | Magnetic Cards： |
| Magnetic card type: Complies with ISO/IEC 7810/ID-1,7811-1/2/6 standards | |
| Magnetic coercivity: Supports Lo-Co low coercivity/Hi-Co,high coercivity magnetic cards | |
| Magnetic card read: Supports magnetic card reading | |
| IC Cards | |
| IC card standard: Complies with ISO/IEC 7816-1/2/3, EMV 4.2, PBOC3.0 | |
| IC card types: CPU cards T=0 protocol, T=1 protocol,SLE4442, SLE4428, T24C01, AT24C02…24C64,AT88SC102 | |
| Contactless IC Cards | |
| Contactless IC card standard: Complies with ISO/IEC 14443-1/2/3/4 | |
| Contactless IC card types: Mifare Classic: Mifare one S50/S70/UL/Type A CPU/ Type B CPU | |
| Card Specification | Material: Paper card and PC card |
| Width: 54 ± 0.5 mm(W) Length: 85 ± 0.5 mm | |
| Thickness: 0.7 ～1.0mm | |
| Power Supply | Operating Voltage：24VDC±10%, ripple <200mv |
| Operation Current | Peak Current：< 3.0A , |
| Quiescent Current：< 0.5A | |
| Interface | RS-232 standalone asynchronous half-duplex communication |
| Interface: PH-3pin socket | |
| Card Hopper Capacity | Capacity: 150 cards (based on 0.76mm standard thickness); Optional |
| configurations: 200 cards or 250 cards. | |
| Alert Function: Supports low card warning and empty card warning. | |
| (Note: stacker capacity can be extended to 300 pcs or 400 pcs) | |
| Recycle Box | Quantity: 1 recycle box |
| Capacity: 18-20 cards/box (based on 0.76mm standard thickness) | |
| Alert Function: Supports full recycle box warning | |
| Environmental Conditions | Operation Temp: 0 ℃ to 45℃ |
| Operation Humi: 30～90% (Relative Humidity) | |
| MTBF | > 200,000 hours(electronic components only) |
| Net Weight | About 2.7kg |
Robust industrial-grade motorized card dispenser. Features a triple-interface reader/writer (Magnetic/IC/RF) for reliable, high-volume card personalization and issuance in demanding environments.
