Features:
- TOUCH READY -Adopts the latest projected capacitive solution with (G+G) 10-point touch ,it delivers great optical clarity and touch durability. 3mm thickness tempered cover glass provide front IK08 vandal-proof degree .
- FEATUREED ELMENTS -The touch screen is sealed to prevent the bad influence from dirt, dust and liquid , can meet the front IP65 water-resistant requirement.

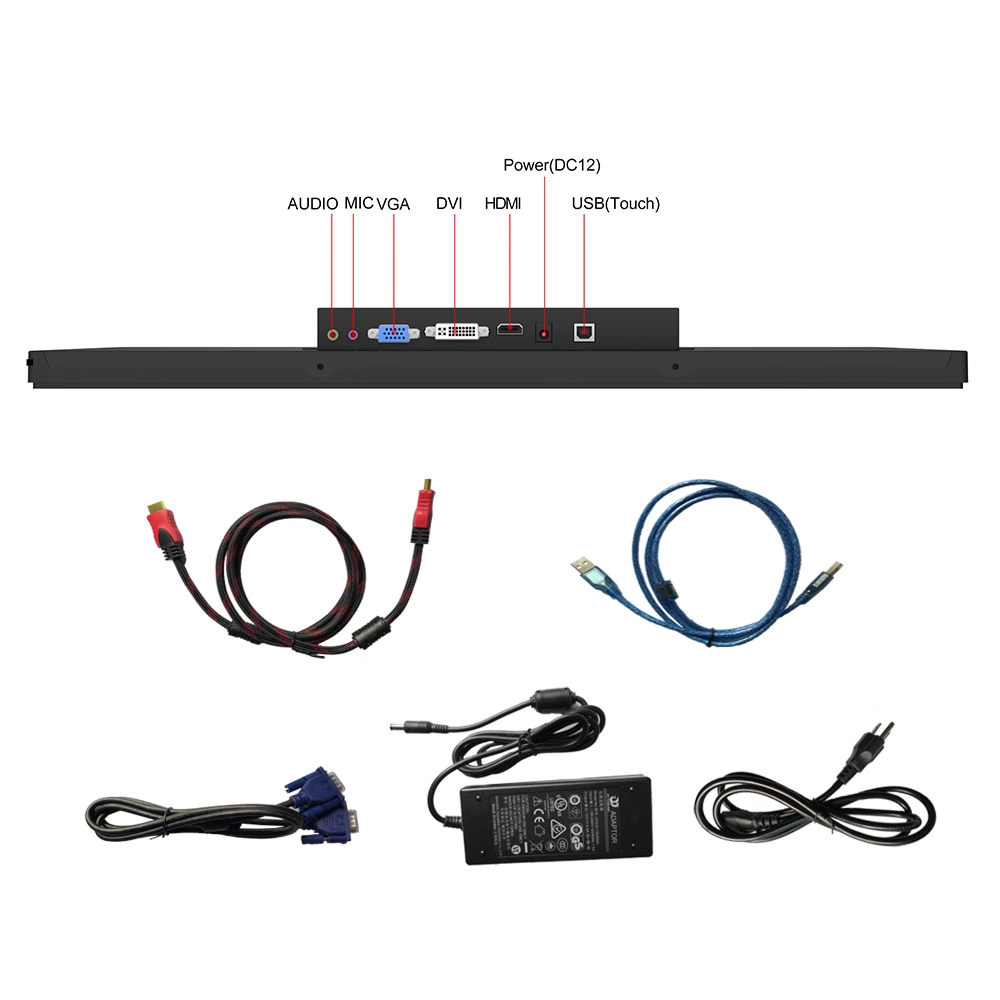

- RICH INTERFACES – Coming with HDMI , VGA , DVI and Audio interfaces to meet different needs of various professional display application.
- COMMERCIAL GRADE – Our open frame touchscreen monitor delivers the quality and reliability . We design, build and are responsible for the complete solution with touch integrated from the start.
- STABILITY – Using our own touchscreens combine with our technology , everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).

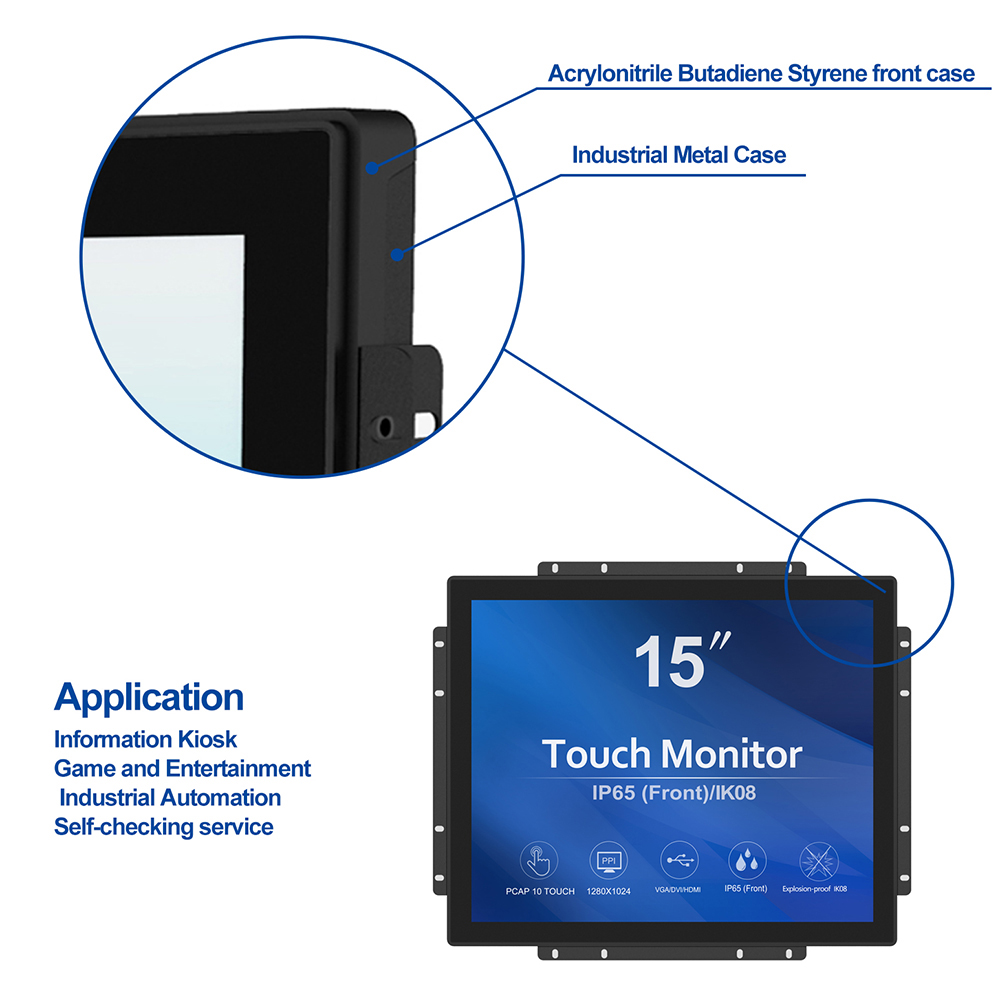

Applications:
- Information Kiosk
- Game and Entertainment
- Industrial Automation
- Self-checking service
Specifications:
|

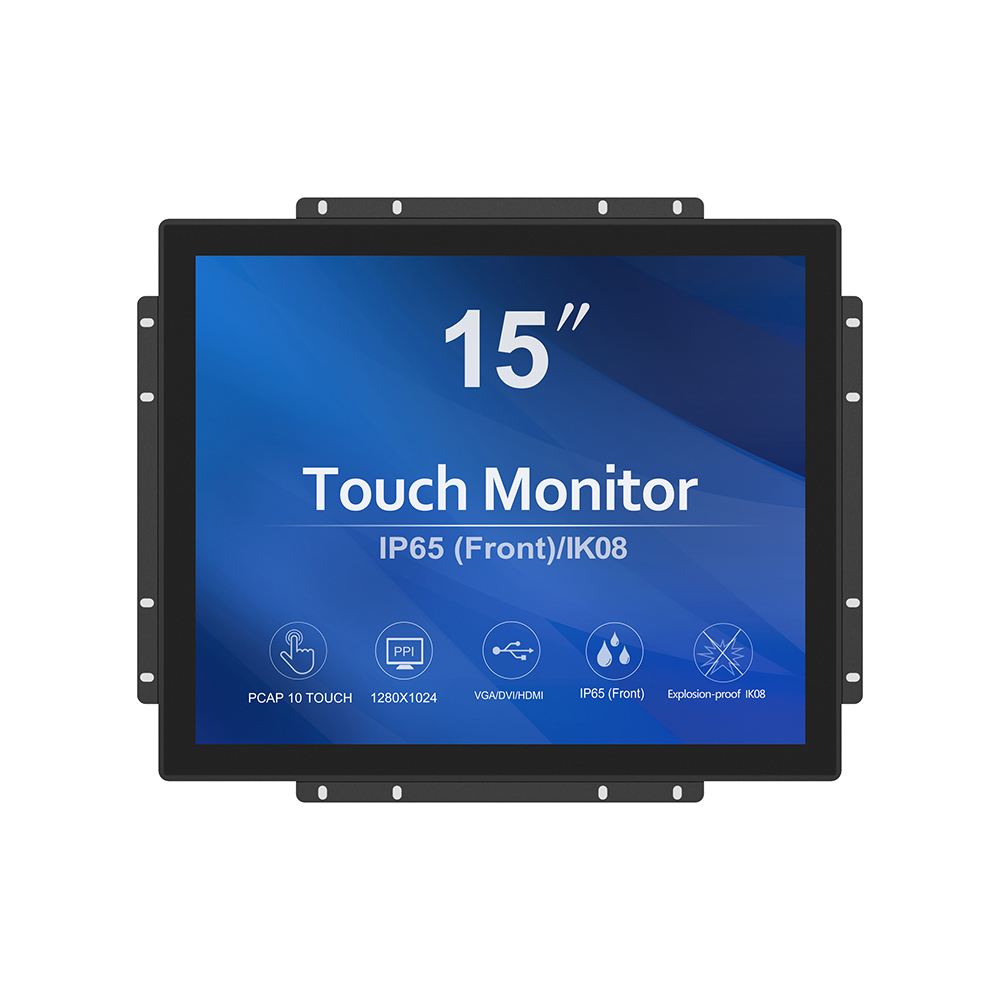

Product Name:
|
Touch Screen Monitor
|
|
Model No.:
|
TM-1502C
|
|
Display Type:
|
Active Matrix TFT LCD, LED Backlight
|
|
Touch Technology:
|
Projected Capacitive (10 Points)
|
|
Case/ frame Color:
|
Black
|
|
The Diagonal Dimension:
|
15″ diagonal
|
|
Aspect Ratio:
|
4:3
|
|
Overall Dimensions:
|
355mm(W) x279 mm(H),Thickness: 47 mm)
|
|
Active Area:
|
304.128mm(H) x 228.096mm(V)
|
|
Display Colors:
|
Display Colors:
|
|
Resolution(pixel):
|
1024 x 768 @ 60Hz
|
|
Brightness(Standard):
|
300cd/m²
|
|
Response time:
|
15 ms
|
|
View Angle(from center):
|
L/R:85/85;U/D:85/85 (Typ.)(CR≥10)
|
|
Contrast Ratio:
|
1500:1(Typ.)
|
|
Input:
|
VGA,DVI,HDMI(optional DP)
|
|
Input Video Signal Connector:
|
Female head DE – 15 connector, female head DVI – D, Dual -Link connector, female head HD connector
|
|
OSD:
|
Digital OSD
|
|
User Controls:
|
OSD Button: Menu, Up, Down, Select, Power
|
|
Power:
|
Power connector (on power adapter) – Type: DC cartridge Plug: Cartridge OD: 5.5 mm (± 0.1mm); Needle Inner Diameter:2.1 mm (± 0.1
mm); Cartridge Length: 9.5 mm (± 0.5 mm) |
|
External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) – Type: DC cartridge receptacle;
Cartridge ID: 5.5 mm(± 0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (± 0.3mm); |
|
|
Temperature:
|
Work: 0 ° C ~ 40 ° C; Storage: -20 ° C ~ 60 ° C
|
|
Humidity:
|
Work: 20% to 80%; Storage: 10% to 90%
|
|

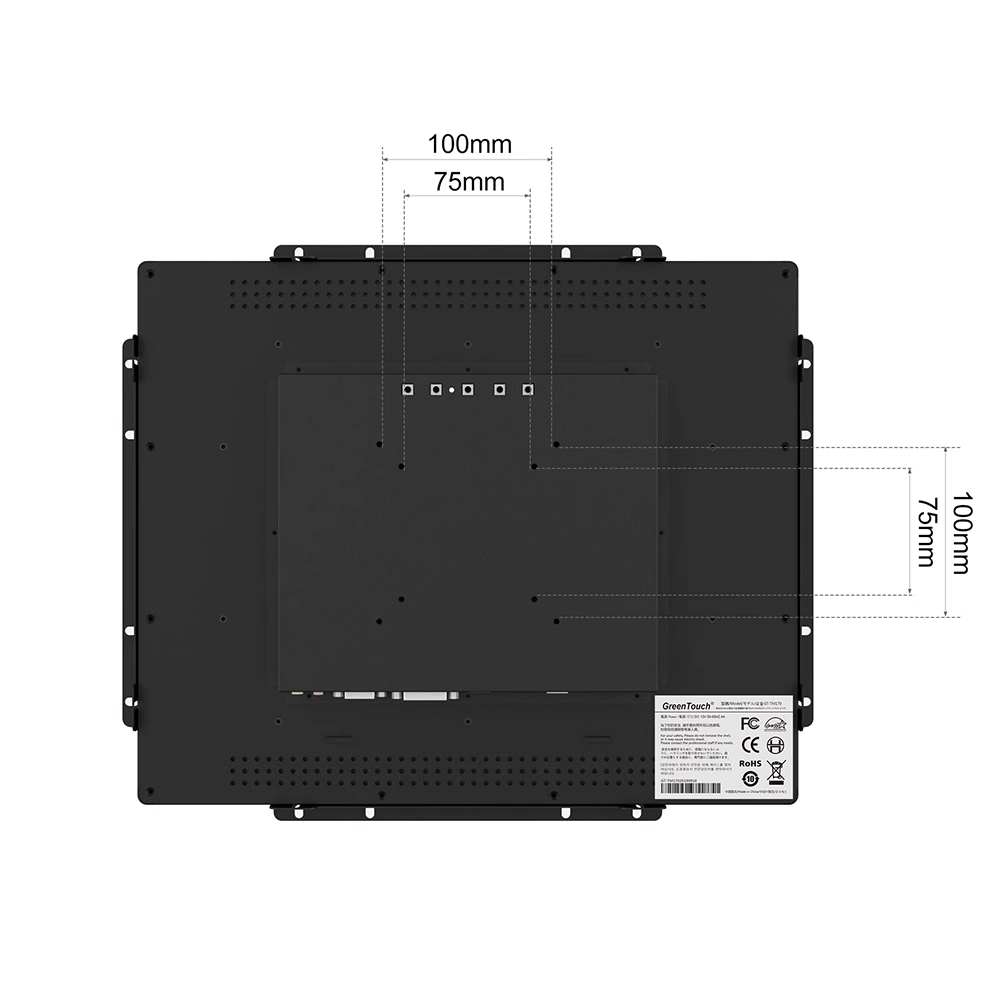

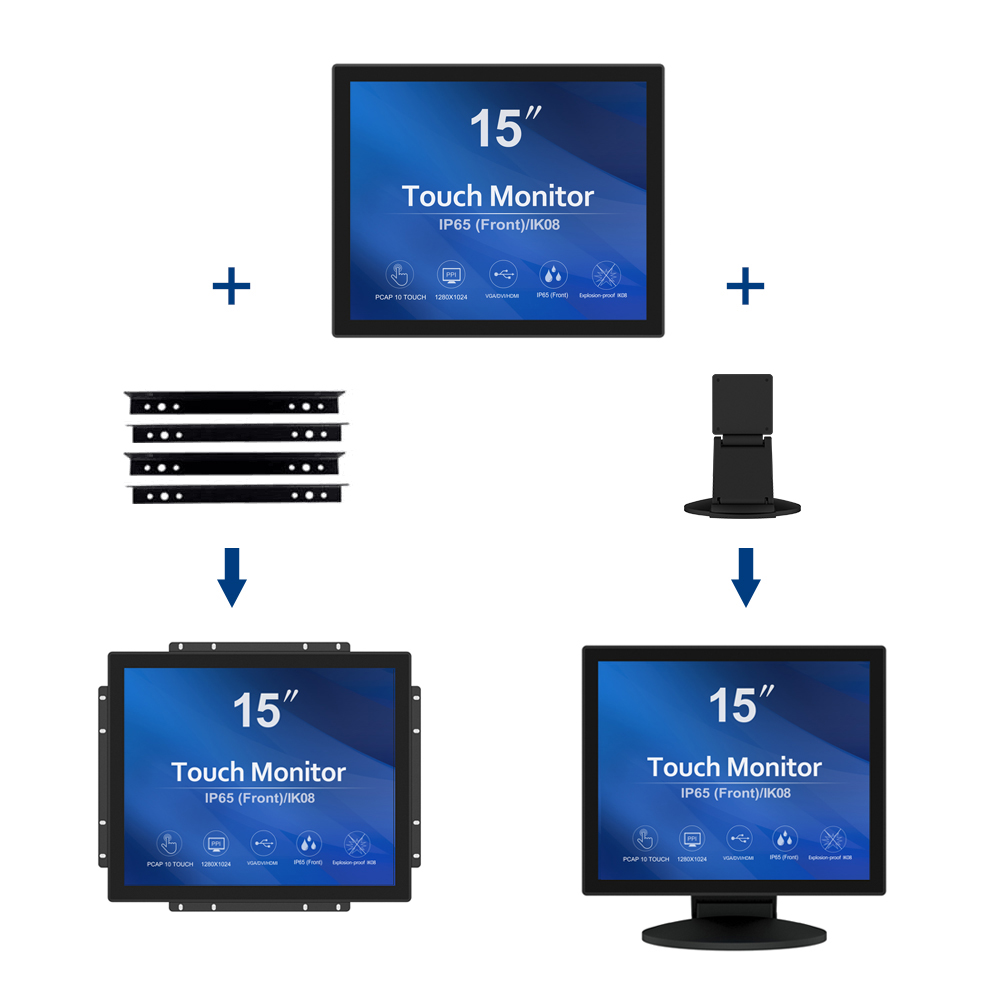

Installation options:
|
Open Bracket Mounting,VESA Mounting;
|
|
Warranty:
|
1 Year
|
|
Certificates:
|
FCC, CE,RoHS,CB,HDMI
|
OTHER SIZE Reference
|
Size
|
Model
|
Ratio
|
Overall Dimensions(W*H*T)
|
Active Area
|
Brightness
|
Resolution
|
Net weight(approximate)
|
|
10.1″
|
TM-1012C
|
16:10
|
265*179.5*45mm
|
216.96*135.6mm
|
330 cd/m²
|
1280*800 @Hz
|
2.8 kg
|
|
15”
|
TM-1502C
|
4:3
|
355*279*47mm
|
304*228mm
|
330 cd/m²
|
1024*768 @Hz
|
4.21 kg
|
|
15.6”
|
TM-1562C
|
16:9
|
398*248*47mm
|
344*193.5mm
|
400 cd/m²
|
1920*1080 @Hz
|
3.67 kg
|
|
17”
|
TM-1702C
|
5:4
|
385*317*47mm
|
337.9*270.3mm
|
250 cd/m²
|
1280*1024 @Hz
|
4.97 kg
|
|
18.5″
|
TM-1852C
|
16:9
|
457*281*47mm
|
409.8*230.4mm
|
250 cd/m²
|
1366*768 @Hz
|
4.98 kg
|
|
19″
|
TM-1902C
|
5:4
|
430*355*47mm
|
376.3*301mm
|
250 cd/m²
|
1280*1024 @Hz
|
5.9 kg
|
|
21.5″
|
TM-2152C
|
16:9
|
532*319*47mm
|
476.6*268.1mm
|
250 cd/m²
|
1920*1080 @Hz
|
6.3 kg
|
|
22″
|
TM-2202C
|
16:10
|
527.2*350*60mm
|
473.7*296.1mm
|
250 cd/m²
|
1680*1050 @Hz
|
7.5 kg
|
|
23.6″
|
TM-2362C
|
16:9
|
581.8*350.8*60mm
|
521.2*293.2mm
|
250 cd/m²
|
1920*1080 @Hz
|
7.7 kg
|
|
23.8″
|
TM-2382C
|
16:9
|
586*356*47mm
|
527*296.4mm
|
250 cd/m²
|
1920*1080 @Hz
|
7.55 kg
|
|
27″
|
TM-2702C
|
16:9
|
655.7*396*55mm
|
597.8*336.3mm
|
300 cd/m²
|
1920*1080 @Hz
|
10.38 kg
|
|
32″
|
TM-3202C
|
16:9
|
749.1*452.7*65mm
|
698.4*392.8mm
|
400 cd/m²
|
1920*1080 @Hz
|
13.3 kg
|
|
43″
|
TM-4302C
|
16:9
|
1007.3*596.6*69mm
|
940.8*529.2mm
|
400 cd/m²
|
1920*1080 @Hz
|
15.2 kg
|
|
49″
|
TM-4902C
|
16:9
|
1141.9*672.2*71mm
|
1073.7*604mm
|
380 cd/m²
|
1920*1080 @Hz
|
18.2 kg
|
|
55″
|
TM-5502C
|
16:9
|
1277.7*748.5*70mm
|
1209.6*680.4mm
|
400 cd/m²
|
1920*1080 @Hz
|
20.2 kg
|
