Features:
- Adopting Intel 3rd generation low-voltage processor to support XP system
- Supports 1-way PCI/PCIE full-length card expansion
- 6 serial ports support built-in isolation modules
- Support diversity for quick customization
- All aluminum alloy, fully sealed, fanless design, dustproof, shockproof, and anti-interference
- Powerful scalability performance
- The whole machine is made of all aluminum alloy material, which is high-end and atmospheric
Optional accessories:
- WIFI module
- 4G module
- GPIO to DIDO isolation module
- 2-way CAN interface card with isolation
Parameters:
| CPU | Processor | integrated with 3rd generation Intel ® I5-3317U 2.6GHz dual core quad threaded processor, TDP 17W
Compatible with Intel ® 3rd generation Core SOC low-power processor |
| GPU | Graphics card | integrated with Intel ® HD Graphics 4000 Graphics Controller |
| RAM | Memory | 1 * DDR3 SODIMM memory slot, single channel 1600/1333MHz memory, supports up to 8GB |
| ROM | Hard drive | 1 * onboard 2.5-inch SATA hard drive interface 1 * MSATA interface, supports Intel protocol SSD, with a transfer rate of up to 6Gbps |
| I/O interface (Peripherals) | Ethernet port | 2 * RTL8111HS Gigabit network card, supporting network wake-up and PXE functions |
| USB | 4-6 * USB 2.0 interface+2 * USB 3.0 interface | |
| COM | 2-6 * RS232 (optional RS422/RS485) | |
| GPIO | supports 8 GPIO channels (optional GPIO to DI/DO isolation module, DI 9-26V input, NPN output) | |
| Audio | board with 6-channel high fidelity audio controllers such as ALC662/262/ALC888, supporting Line out and 2 Euro 5W dualVocal tract | |
| Display | 1 * VGA video interface+1 * HDMI high-definition interface+built-in 1 channel LVDS (supports synchronous asynchronous dual display) | |
| Switch | 1 * switch button+1 * 4pin remote switch terminal (switch+indicator light)/supports powering on/off | |
| Expansion slot | 1 * PCI/1 * PCIEx16 full height expansion slot | |
| I/O interface (Built in) | Interface customization | supports customization of interfaces such as CAN, LAN, USB, COM, etc |
| Functional interface | 1 * MiniPCIE, supporting Bluetooth+WIFI/interface customization extension | |
| Wireless communication | Wireless network | 1 * SIM slot (supports 4G/5G wireless network, requires 4G/5G module) |
| Software support | System | win XP/Win7/Win8/Win10/Linux/embedded system customization |
| Power supply | DC 9-36V wide voltage power input | |
| Interface | 2PIN 5.08mm spacing Phoenix terminal | |
| Power consumption | 25W-60W | |
| Environment | Working temperature | -10~50 ° C w/0.7m/s airflow |
| Storage temperature | -40~85 ° C | |
| Relative humidity | 5% -95%, non condensing | |
| Installation method | Embedded/desktop/wall mounted | |
| Physical characteristics | Body weight | 2.65KG. Due to different configurations, there may be errors. Please refer to the actual product for accuracy |

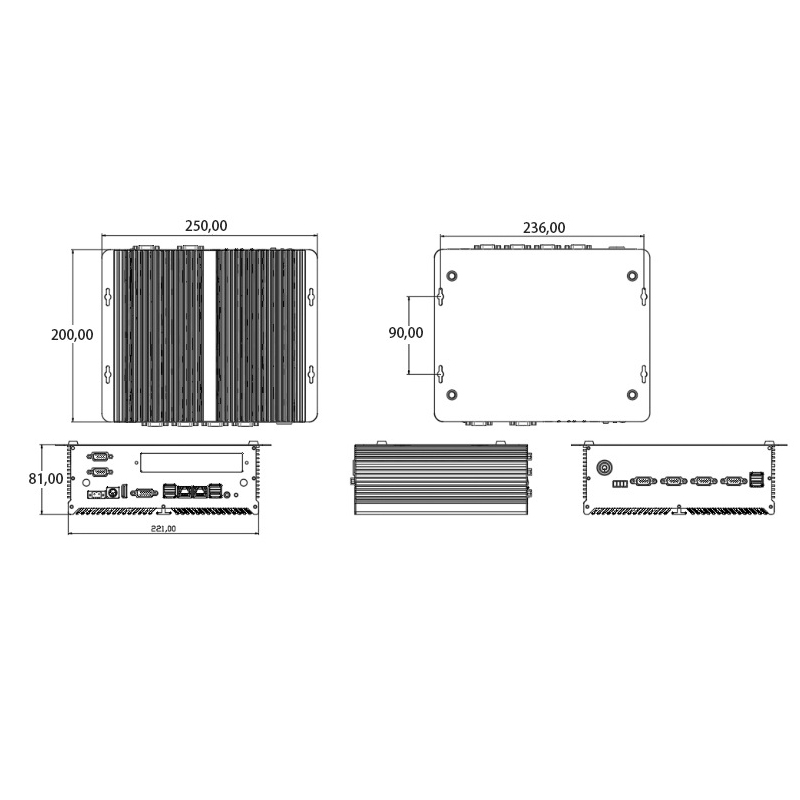

| Body size | Standard version 250 * 81 * 200mm (width x height x depth) | |
| Material/Structure | Aluminum Alloy/No Fan/Closed/ |
