Nuc mini pc Features:
- Small, Quiet, and Extremely Compact
- Comes with VESA mounting bracket
- Intel Celeron J6412/J6413 processor
- 4G RAM and 64G SSD storage

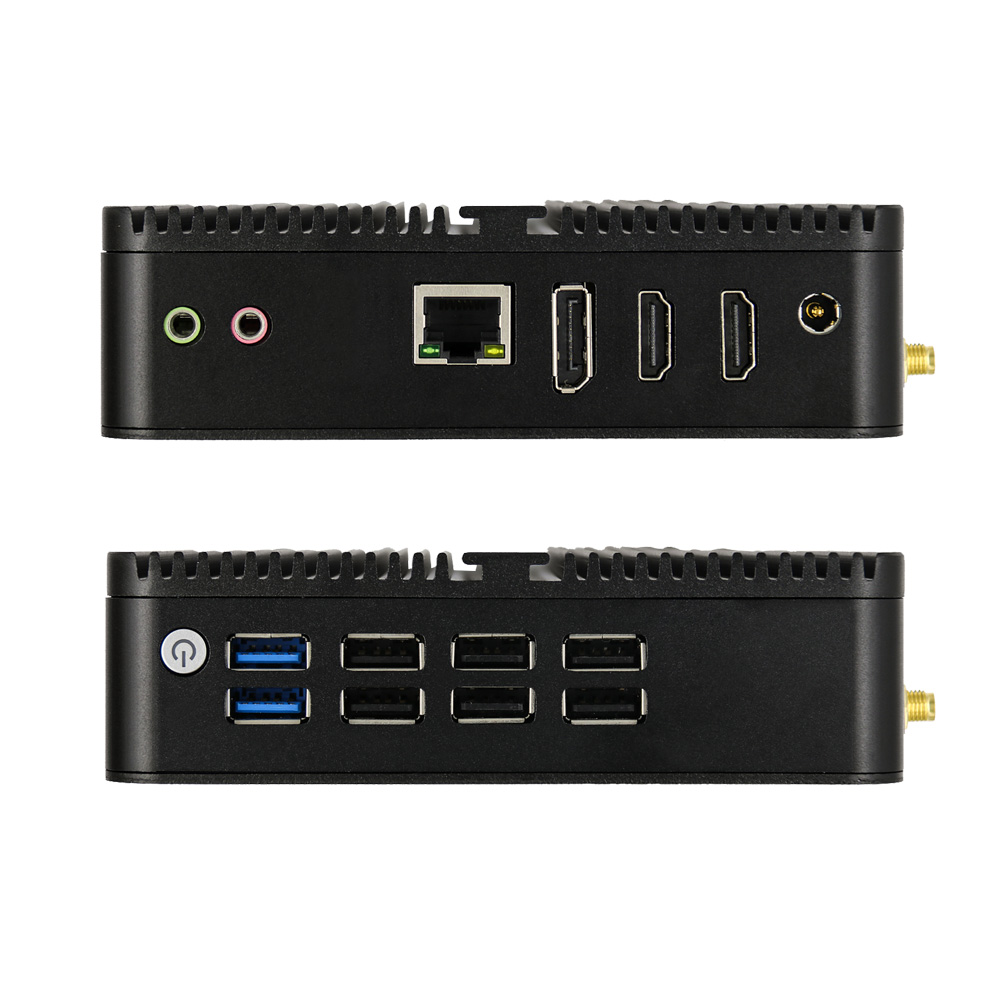

- 6 x USB 2.0 ports, 2 x USB3.0 port,2 x HDMI port, 1 x DP port, 1 x RJ45 Ethernet ports, 1 x 3.5mm audio output, 1 x 3.5mm microphone jack
- Windows 7 operating system
- Optional upgrades: Windows 10 OS, 4GB RAM, 64GB SSD storage, 8GB RAM, 128GB SSD,256GB storage
Nuc mini pc Specifications:
|
Name
|
Mini PC Computer
|
|
Model
|
MPC-N3
|
|
Processor
|
Onboard Intel Celeron J6412/J6413 CPU
|
|
System Memory
|
DDR4 SODIMM×1，Up to 8GB Memory
|
|
Display
|
HDMI, VGA
|
|
Ethernet
|
1 x GbE RJ45 Realtek 8111H
|
|
I/O Port
|
6 x USB2.0, 2 x USB3.0
2 x HDMI + 1 x DP 1 x Audio Line-out, 1 x Audio Mic-in 1 x Power Button 1 x Power LED 1 x Power input 2 x Antenna interface for WIFI |
|
Storage Disk Driver
|
1 x MSATA
1 x 2.5 inch HDD/SSD 1 x M.2 2280 NVME
|
|
Expansion Slot1
|
1 x M.2 2230 for WIFI/BLT
|
|
Watchdog timer
|
1~255 Levels
|
|
OS support
|
Windows® 7 /8/10, WES 7,LINUX
|
|
Mechanical
|
|
|
Construction
|
Aluminum
|
|
Mounting
|
VESA 75/ Panel mount
|
|
Dimension
|
135 x 127×38.7 mm
|
|
Net Weight
|
1 Kg
|
|
Environmental
|
|
|
Operating Temperature
|
-20°C ~ 70°C
|
|
Storage Temperature
|
-30°C ~ 70°C
|
|
Storage Humidity
|
95% @40°C, non-condensing
|
|
Adapter
|
|
|
DC input
|
DC 12V
|
