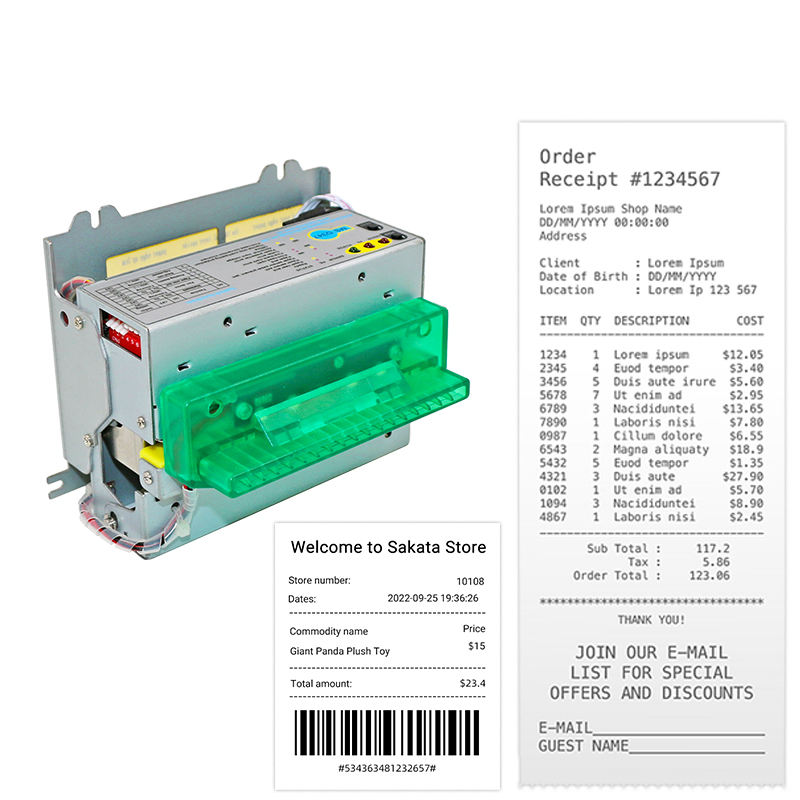

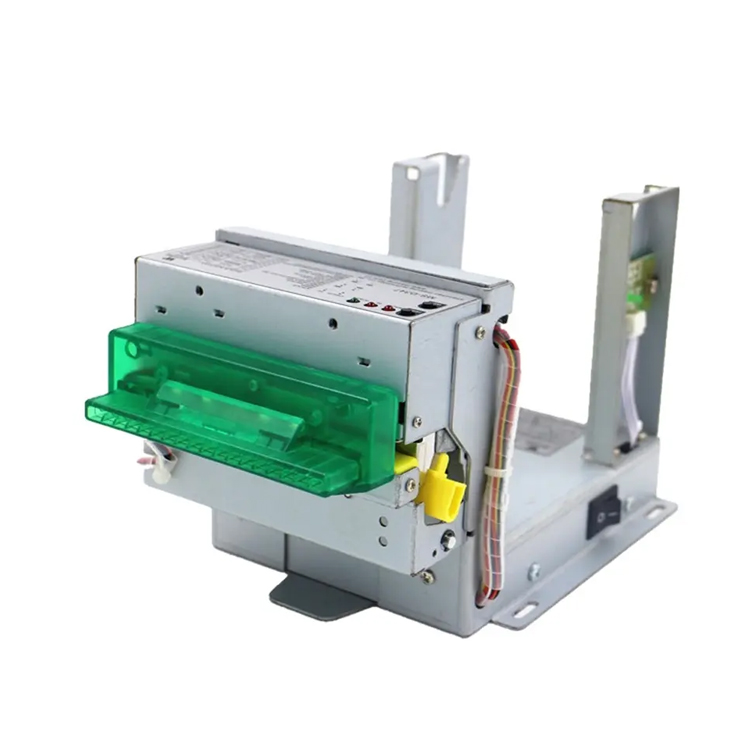

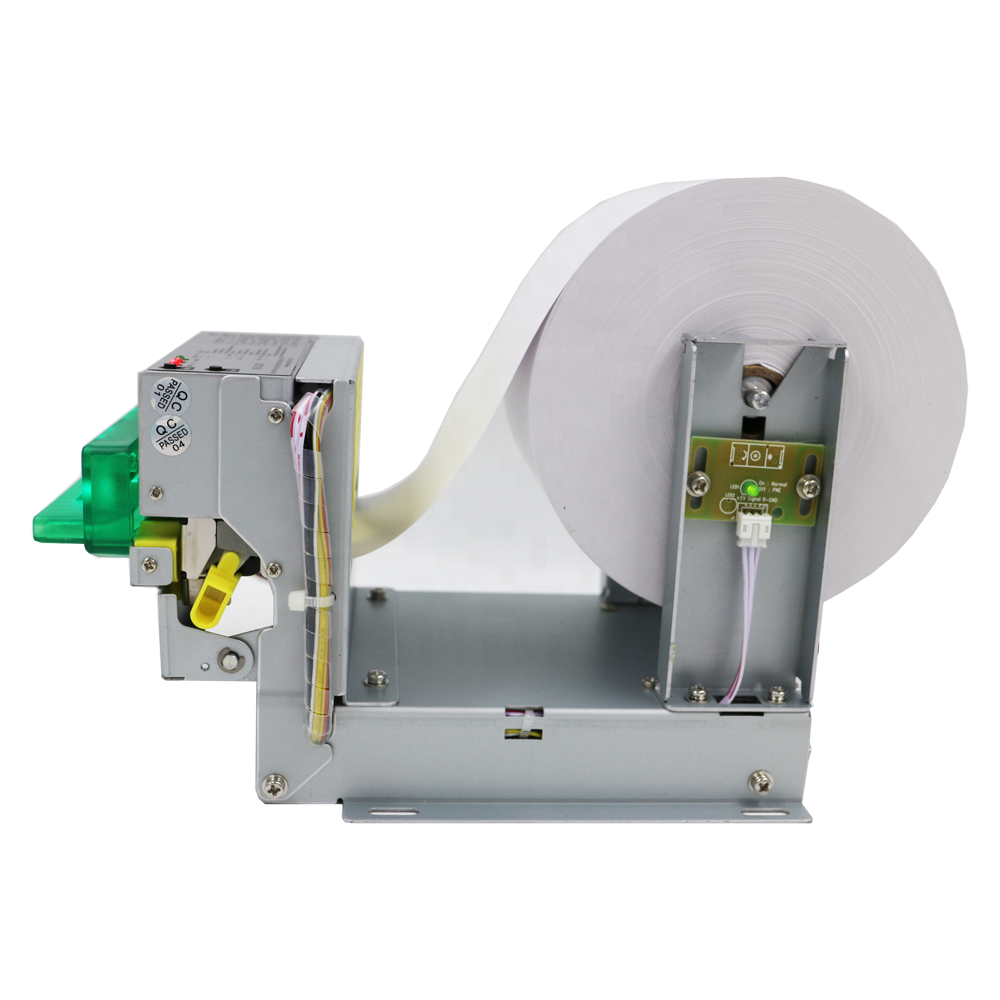

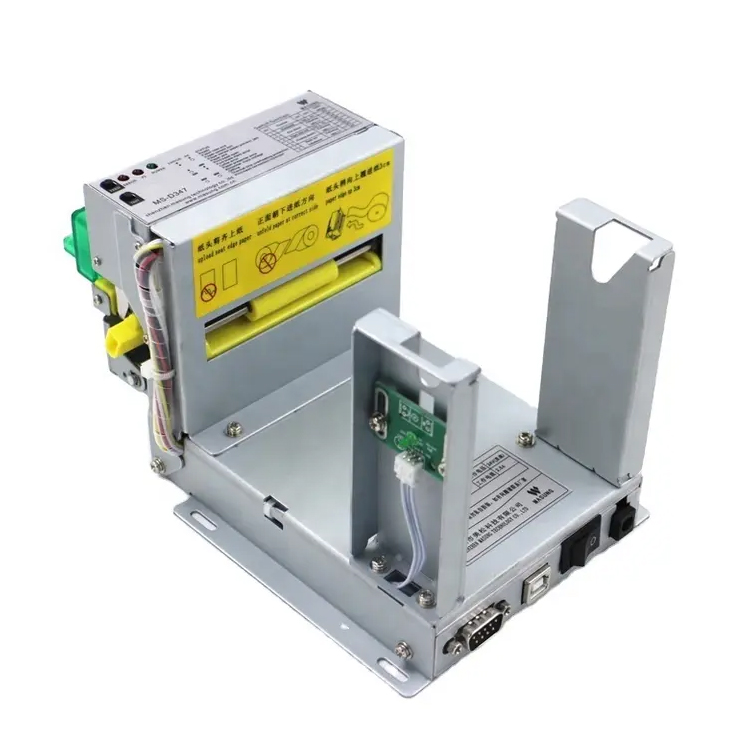

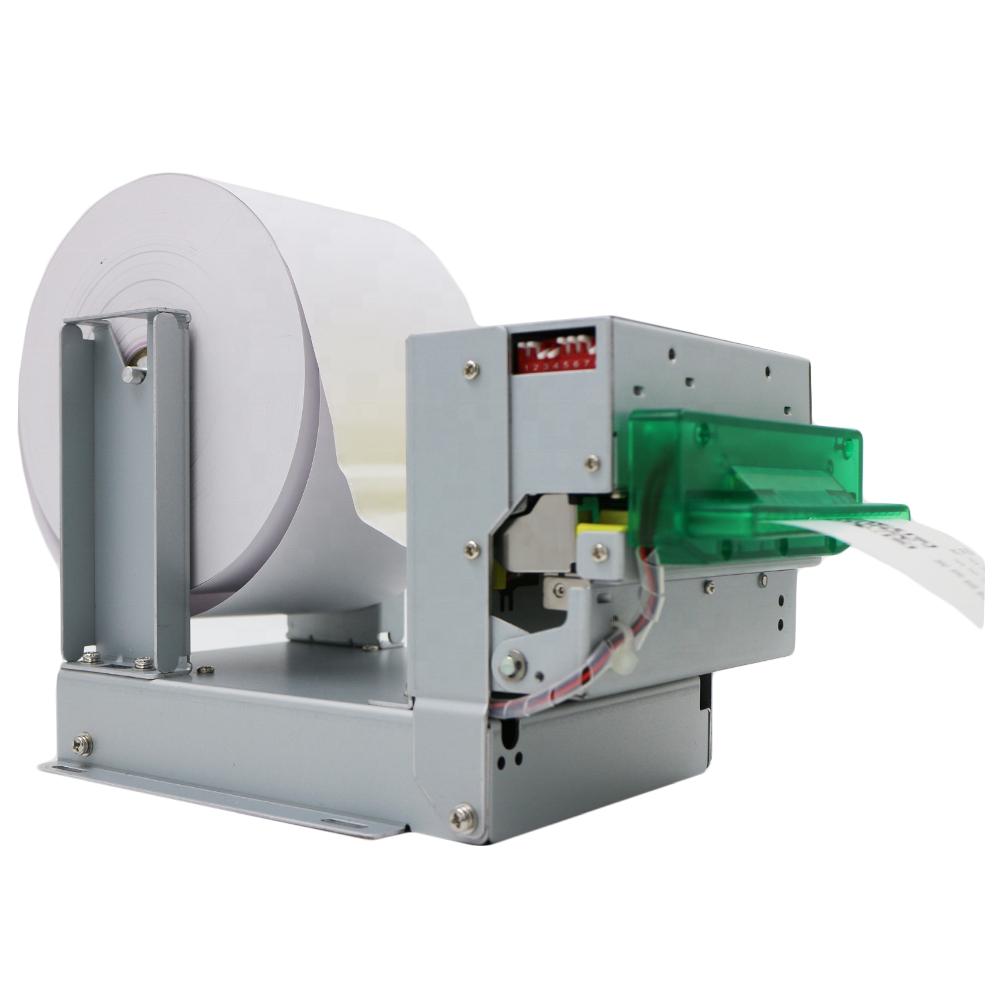

80mm Self service printer KTP-D347TL Series
1. Features anti-jam paper, anti-pull paper, paper end detection, and paper ejector functions
2. Compact control board structure with multiple configurations enhances installation reliability
3. Features automatic paper feed, auto-cutter, paper-out detection, and black mark detection
4. Includes multiple mounting brackets for flexible installation and integration into various devices
5. Low consumable costs with thermal paper. This embedded thermal printer serves as an integrated printing module for self-service kiosks, payment terminals, ticket machines, queue management systems, and other self-service equipment.
Self service printer Applications:

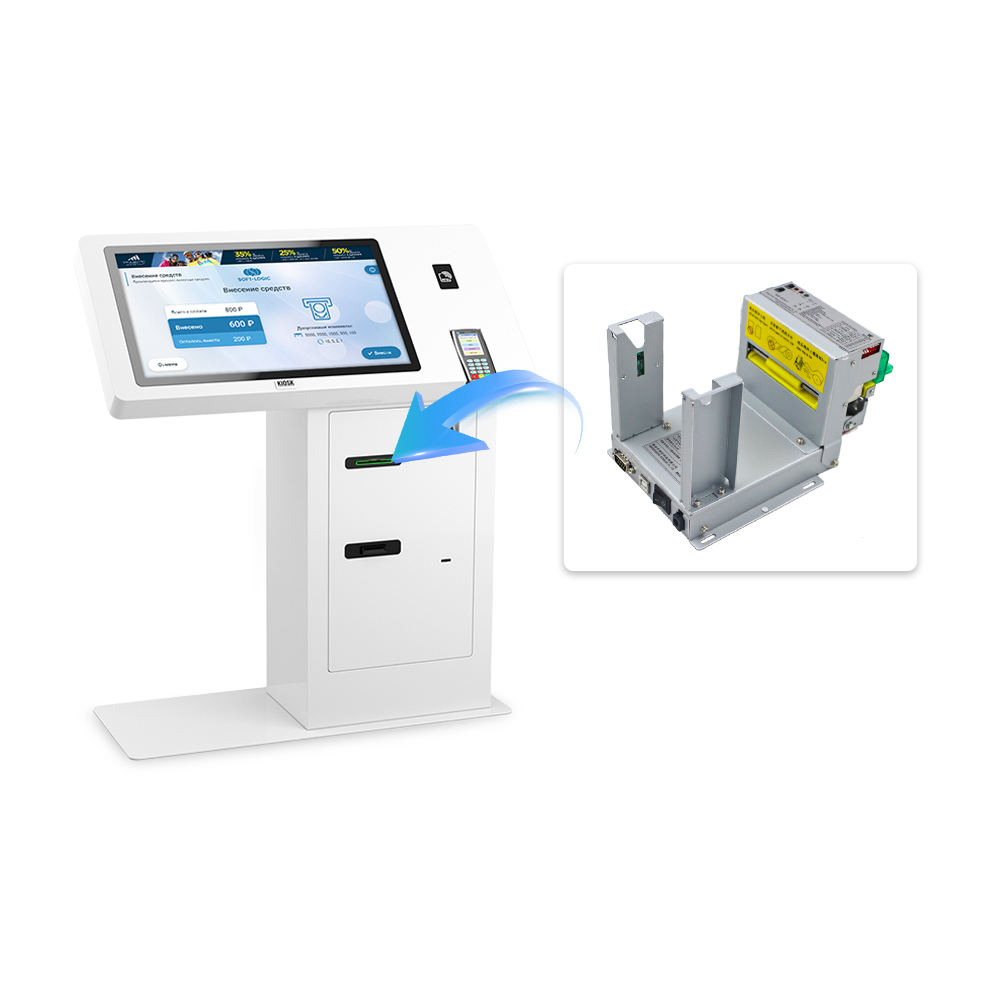

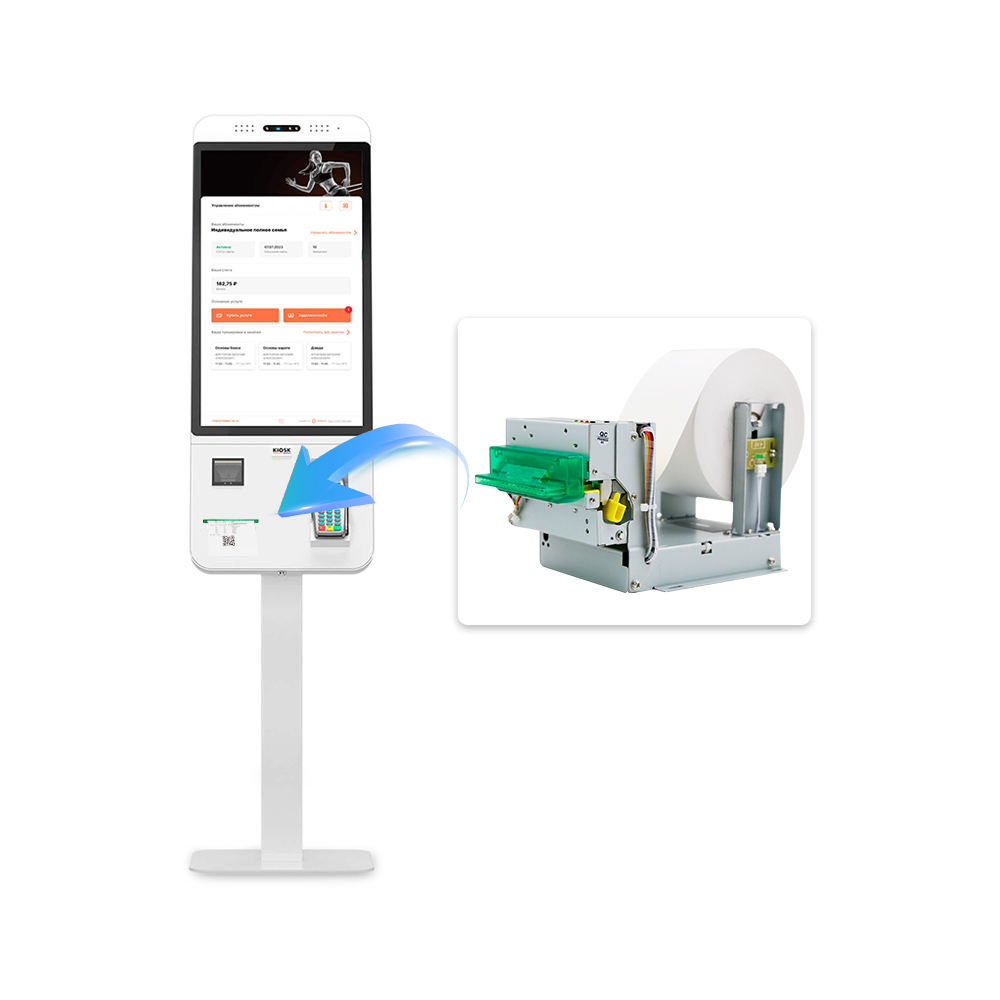

Payment kiosk; information machine; parking system; queue management kiosk; ATM; gas station kiosk; ticket vendor, multimedia kiosk; self-service terminal and more
| mechanism： | CAPD347 | ||
| Printing method | Thermal dot line printing | ||
| Dots/line | 576 dots/line | ||
| Dot pitch | 8 dot/mm | ||
| Paper width | 80 mm | ||
| Printing width | 72 mm | ||
| Paper thickness | 54~78 um | ||
| Printing speed | 170 mm/s | ||
| Paper feed direction | 180° horizontal | ||
| Sensors | Head temperature | Thermistor | |
| Paper press shaft | Mechanical switch | ||
| Paper end | Photo interrupter | ||
| Paper loading | Easy loading | ||
| Font size | ASCII:9*17;12*24;
Chinese: 24*24 |
||
| Power supply | Logic circuit | 4.75~5.25 V | |
| Motor | 21.6~26.4 V | ||
| Dimension (L*W*H) | 186.9*121.5*112.2 mm | ||
| Weight | Approx 1.2 kg (without paper roll ) | ||
| Reliability | Circuit: over 1,000,000,000 pulses
Cutter: over 7,000,000 cuts Thermal head: over 100 km MCBF: 37,000,000 lines |
||
| Ambient environment | Work temperature | -10 ℃~50℃ | |
| Work humidity | 20~85% RH | ||
| Storage temperature | -25℃~70℃ | ||
| Storage temperature | 10~90% RH | ||
| Interface | RS-232 + USB | |
| power supply | DC 24V/2.5A | |
| Command set | ESC/POS | |
| Barcode | supported | |
| Firmware location | 512KB Flash memory | |
| Buffer | 32 KB | |
| SRAM | 64KB (extra) | |
| Driver | Parallel/USB driver | |
| System | Windows/Linux/Android OS | |
| Accessories: | Sensors | paper near end sensor; |
| paper jam sensor; | ||
| dragging paper sensor; | ||
| Paper roll holder | ||
| Paper bezel ( paper guide) | ||
| Interface connector | ||
| Power supply unit | ||
| Cable | ||
