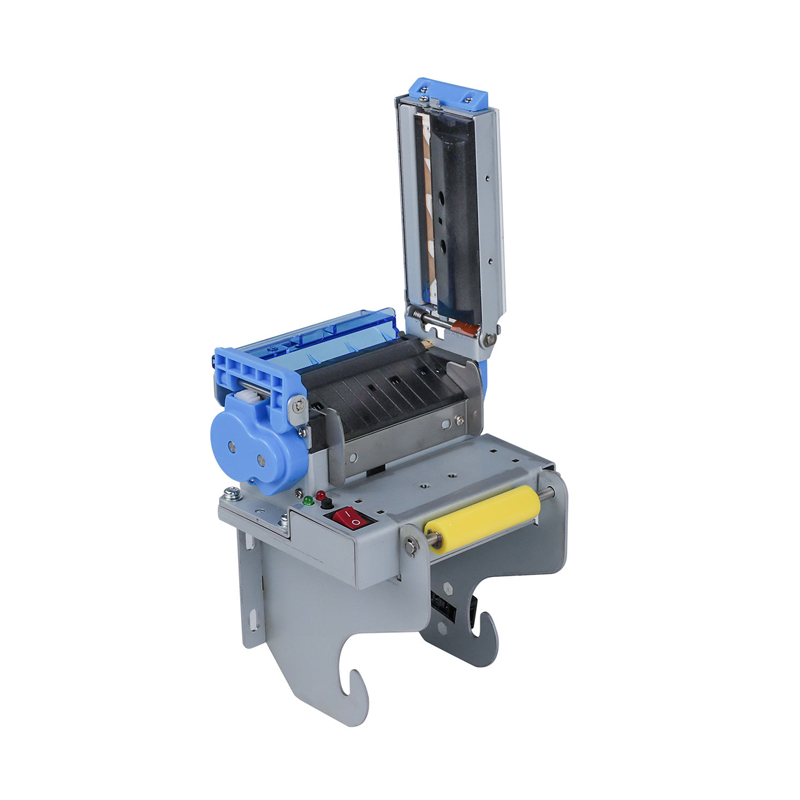

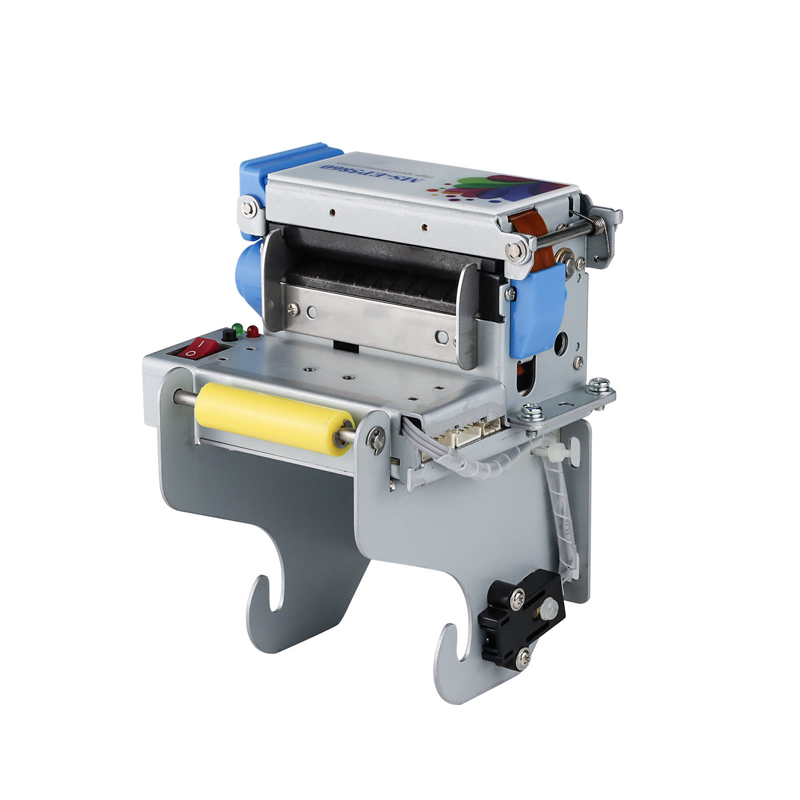

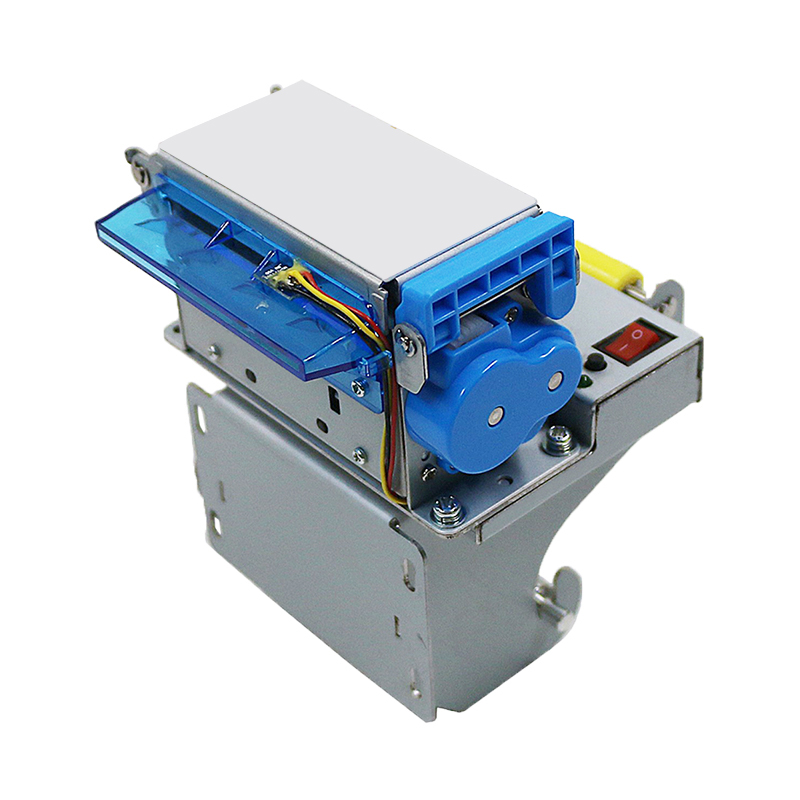

Self-Service Kiosk Printer Features:
- Side flip cover design, easy maintenance.
- Vertical structural design saves space, enabling a slimmer kiosk.
- Support 58mm and 60mm width thermal paper, paper roll diameter max is 80mm.
- Automatic paper feed, automatic cutting, more convenient receipt printing, cutter life of 1 million cycles, can be set for half-cut or full-cut.
- SEIKO print head, strong versatility, control board fully integrated with the core mechanism, significantly saving module space and maximizing ease of module development and design.
- Uses Rohm line thermal film, high-speed printing, low noise, strong reliability, and high print quality.
- Equipped with anti-jamming and anti-pulling paper exit nozzle.
- Large gear design, strong traction, large paper feeding force, can drive large paper rolls.
- Optional black mark function, can print black mark paper.
- Windows driver for Windows 7/8/10/Linux
- Demo & SDK for Windows / Linux / Android/Raspberry pi platform.
Self-Service Kiosk Printer Specifications:
|
|
printing method
|
Thermal dot line printing
|
|
|
lattice
|
448dots
|
||
|
printing speed
|
200mm/s（max）
|
||
|
Print width
|
60mm (max)
|
||
|
Paper width
|
60mm(max)
|
||
|
Paper thickness
|
60 – 120 um
|
||
|
Load paper roll
|
Ø80mm(max)
|
||
|
Paper feeding method
|
Automatic suction paper (horizontal 180°)
|
||
|
Paper cutting method
|
Full cut/half cut
|
||
|
Paper feeding and printing life
|
100KM
|
||
|
Print format
|
Invert, underline, italic, bold, etc.
|
||
|
Cutter life
|
1 million times
|
||
|
Print baud rate
|
9600、19200、38400、57600、115200
|
||
|
character
|
ASCII
|
9*17、12*24
|
|
|
Chinese
|
24*24 points
|
||
|
Detect |
Print head temperature
|
Temperature Sensor
|
|
|
Rod lift detection
|
Mechanical switch
|
||
|
Paperless inspection
|
Photoelectric sensor
|
||
|
Black mark detection
|
|||
|
Joint detection
|
|||
|
condition
|
Operating Voltage
|
24 ± 5% V / 2A
|
|
|
Average current
|
2A@24V
|
||
|
Peak current
|
5.5A
|
||
|
Communication Interface
|
RS232、USB
|
||
|
Thermal paper specifications |
Paper type
|
Thermal paper roll (The thermal layer is located on the outer side of the roll paper)
|
|
|
Recommended paper type
|
TF50KS-E(65 μm) PD 160R(75 µm) P350(62 μm)
Hansol Thermo 65(65 μm) |
||
|
environment
|
Operating temperature
|
-10 ~ 50℃ (no condensation)
|
|
|
Operating humidity
|
20% ~ 85%RH(80%RH at 40℃)
|
||
|
Dimensions
|
long
|
95.3mm
|
|
|
width
|
47mm
|
||
|
high
|
52.4mm
|
||
|
weight
|
About 0.30KG (without paper roll, paper outlet, bracket)
|
||

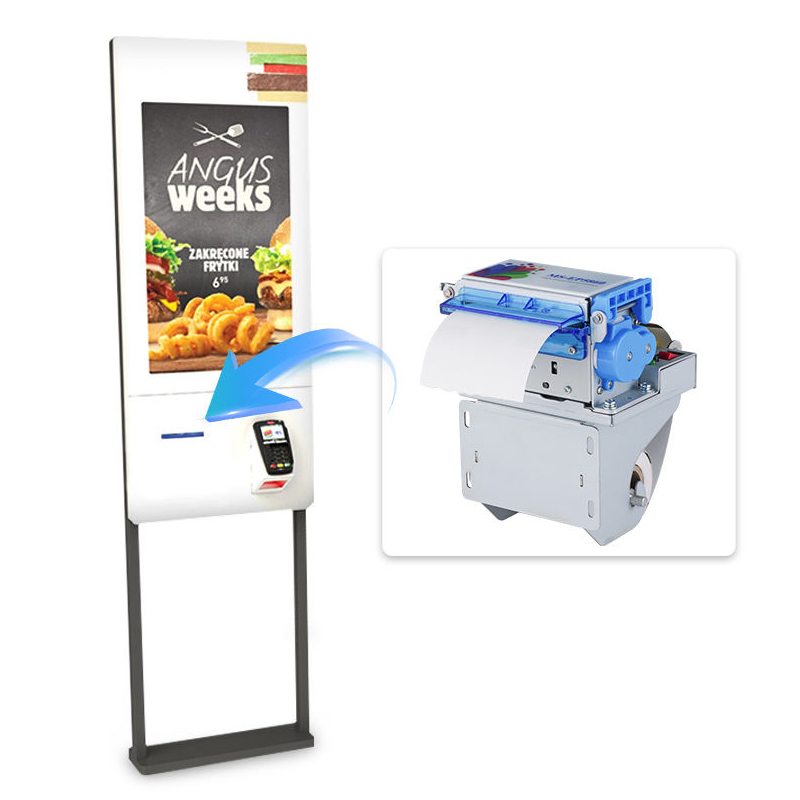

Print event tickets, passes, and receipts on-demand. QR code support and seamless integration. Ideal for festivals and conferences.Elevate your ticketing operations with the robust Ticket Kiosk Thermal Printer, designed for high-volume print jobs and swift transaction processing, delivering a seamless experience for both you and your customers.
