Features:

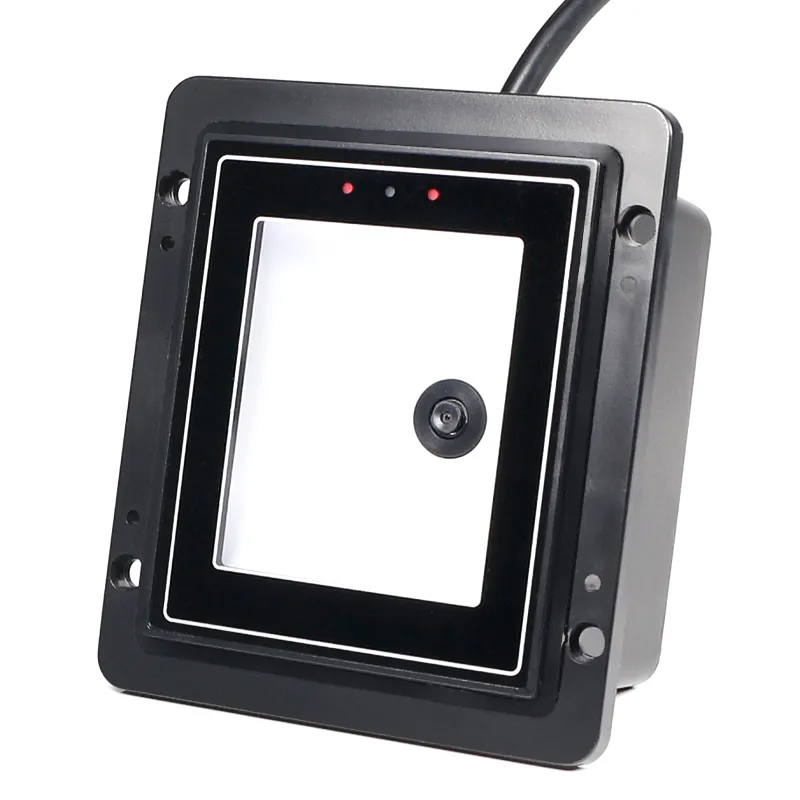

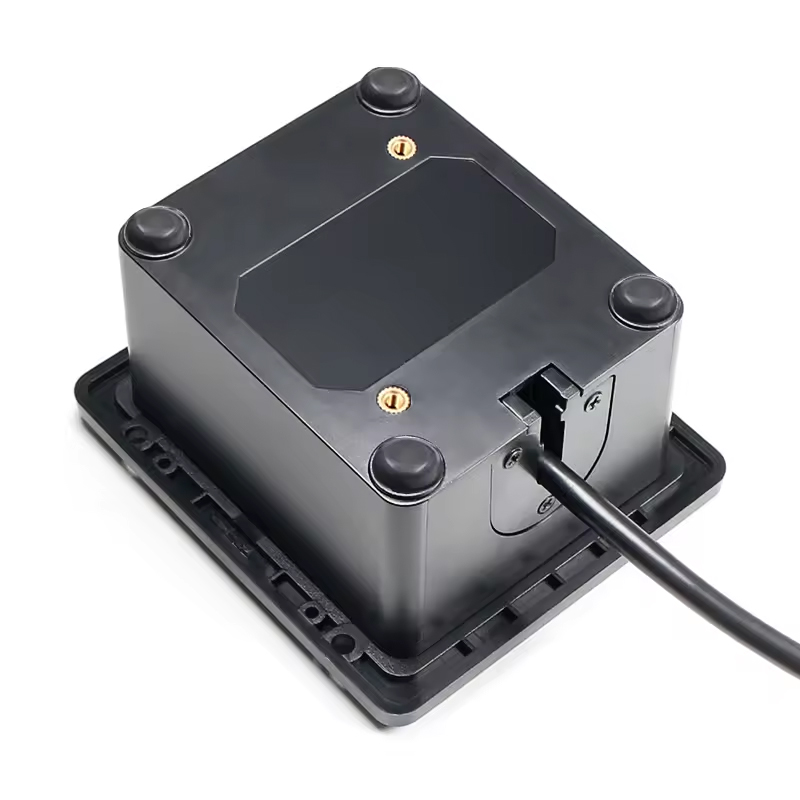

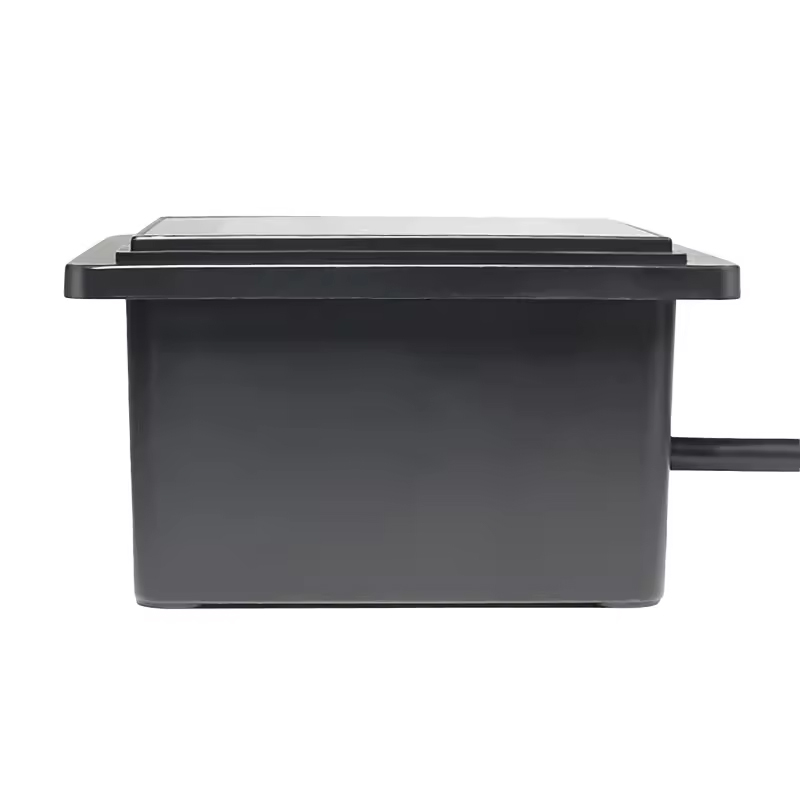

- Fixed mount scanner
- Hardware: Main frequency -1G, sensor – Global 120 frames, storage -32M
- Structural protection: The entire machine is designed with waterproof design and can withstand continuous rain for 24 hours
- Performance: Sensitive to strong light and dark, smooth recognition and scanning
- Secondary development: serial port instructions, SDK, high-speed image acquisition (130 milliseconds), upper computer software
- Reliability: Embedded code matrix modular iterative mass production for 9 years, hardware overcurrent, overvoltage, static electricity, electromagnetic interference, common mode interference design
Specification:
| Performance | Image Sensor | Piexs | SR（standard）:640*480; ER(Long distance）1280*800； |
| Illumination | White LED | ||
| Symbologies | 2D | (PDF417)、(QR Code)、(Micro QR)、(Data Matrix)、(Aztec)、(Hanxi code) | |
| 1D | (Codabar)、(Code 39)、(Code 32)、(Industrial 2 of 5)、(Interleaved 2 of 5)、(Standard 2 of 5)、(Matrix 2 of 5)、(Code 93)、(Code 11)、(Code 128)、(UPC-A)、(UPC-E)、(EAN/JAN-8)、(EAN/JAN-13)、(GS1 DataBar(RSS14) | ||
| Resolution* | ≥5mil | ||
| Typical Decode Range* | SR(Standard） | ||
| EAN-13 (13mil) | 0mm~80mm | ||
| PDF417 (6mil) | 0mm~45mm | ||
| Code39 (6.6mil) | 5mm~30mm | ||
| Data Matrix (10mil) | 0mm~30mm | ||
| QR Code (15mil) | 0mm~60mm | ||
| Min Print Contract* | ≥20% | ||
| Scan Angel** | Skew±70°，Pitch±70°，Roll 360° | ||
| Fov | SR:Horizontal 74°，Vertical 65°;ER:Horizontal42°，Vertical 26.8° | ||
| Electronic | Interface | USB、RS232 、RS485 、TTL、Wiegand | |
| Dimension(mm) | 90(W)×78(D)×51(H)(Max) | ||
| Operating Voltage | 4.8 ~ 16 VDC | ||
| Power | 1200mW(Typical) | ||
| Current@5 VDC | Operating | 240mA(RMS Typical)，300mA(RMS Max) | |
| Standby | 170mA | ||
| Environment | Operating Temperature | 0℃~+60℃ | |
| Storage Temperature | -40℃~+70℃ | ||
| Operating Humidity | 5%~95%（Non-Condensing） | ||
| Embient Light | 0~100,000LUX | ||
| Accessories | Cable | USB | USB cable |
| RS232 | RS232 cable | ||
| TTL | TTL cable | ||
| RS485 | RS485 cable | ||
| WG | Wiegand Cable |
